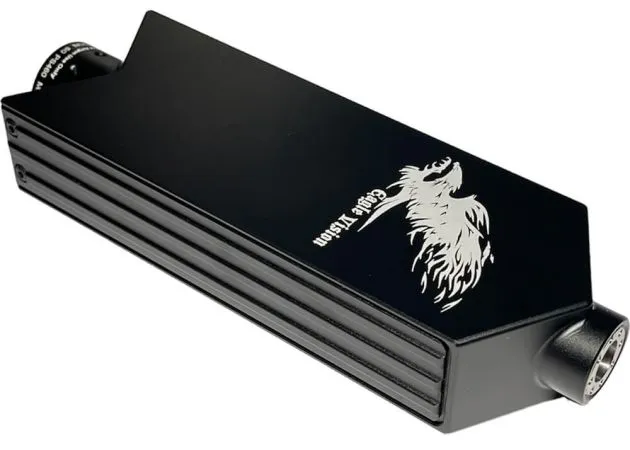

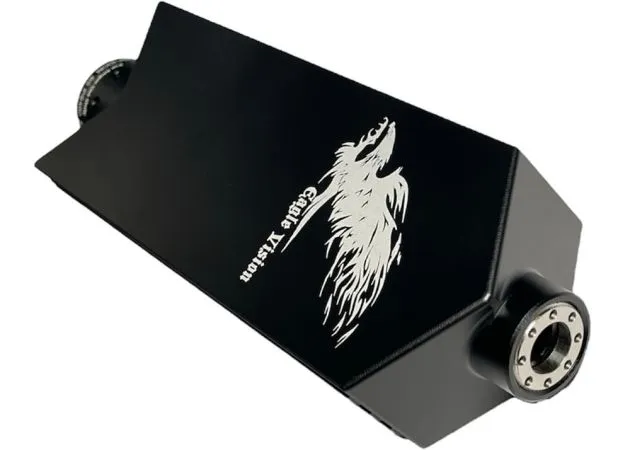

Moderator Eagle Vision Poseidon-60 Interchangeable 1/2 UNF

This Eagle Vision Poseidon-60 Interchangeable ½ UNF moderator can be used for various calibres. It uses a clever, yet simple system with liners and end caps, which can easily be switched between. The moderator is fitted with felt on the inside in order to optimally suppress muzzle noise. With the exception of the air strippers -which are made of steel- all main components are CNC machined out of impact-resistant aluminium, which guarantees minimal tolerances. The set is finished with a black anodized coating that significantly improves corrosion resistance.

The base for this Eagle Vision Poseidon-60 Interchangeable ½ UNF moderator is the moderator itself, which has threaded ends on both sides. There’s M18x1 thread on the front and the back has M23x1 thread. The liners we mentioned before can be inserted into the moderator through the back. There are a few O-rings around the liners that ensure a proper seal, which means placing the liners can take a bit of force. After successfully placing the correct liner, you will have to seal it in. You can do so by putting one of the supplied air strippers on the front end. The back can be closed off with the end cap adapter, which has 1/2×20 UNF thread on the other end. That thread allows you to easily mount the Eagle Vision Poseidon-60 Interchangeable moderator onto the ½ UNF thread on the front end of your rifle.

This set contains liners and air strippers for the following calibres:
• .177
• .22
• .25
• .30
There’s no liner for .30 calibre, but there is an air stripper. That’s because the moderator doesn’t need a liner for .30. Once they’re properly tightened, the air strippers will be sunk in the Eagle Vision Poseidon-60 moderator’s front end. That’s why there’s a set of steel pins and an Allen key included with the set. You can insert the steel pins in the holes on the air stripper’s front end and use the Allen key to leverage the air stripper further in or rotate it out. Additionally, you get a convenient tool along with the Eagle Vision Poseidon-60 Interchangeable ½ UNF moderator, which can also be used to tighten or loosen the air strippers.

Everything comes in a compact, zippered case, which can be used to store or transport all parts in an organised fashion.
